Bowers & Wilkins CCM8.5D Lautsprecher Deckeneinbaulautsprecher 2-Wege
EAN: 714346327904
Custom Installation

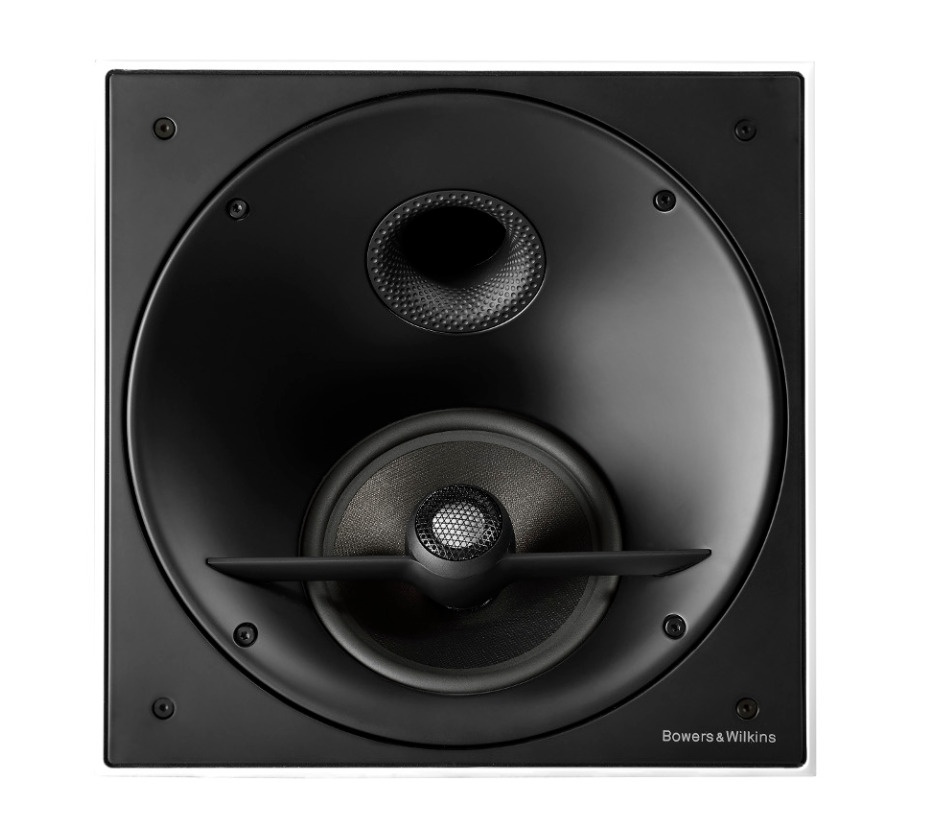

CCM8.5 D
See nothing, hear everything
CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality
acoustics in an incredibly discreet package.
It features a decoupled Diamond dome tweeter and a single 7inch
bass/midrange Continuum driver with anti-resonance plug. All the drive
units are located in a rotatable mini-baffle which allows the user to ‘toe
in’ the drive units of the loudspeaker for the best performance.
For optimum discretion when installed, the Continuum cone is given
a dark finish.
Technical Specifications
Description 2-way in-ceiling loudspeaker
Technical features Aluminium Tweeter ‘wing’
Rotatable aluminium
mini-baffle allows ‘toe-in’
Diamond Dome, Nautilus™
tube-loaded tweeter
Anti-resonance plug
Flowport™
Drive units 1x ø25mm (1in) Diamond Dome,
Nautilus™ tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/
midrange driver with anti-resonance plug
Frequency range (-6dB) 35Hz – 35kHz
Recommended
Amplifier Power 120W
Sensitivity 88dB
Nominal Impedance 8Ω
Frame (width/height) 351mm (13.8in)
Cut-out (width/height) 331mm (13in)
Protrusion 8mm (0.3in)
Net weight 5kg
Back Box BB CCM8.5
